RS485 25m Magnetostrictive Level Transmitter High Accuracy For Liquid

Name: RS485 25m Magnetostrictive Level Transmitter High Accuracy For Liquid
Brand: nuoyingjiaye
Price: 240 USD

China RS485 25m Magnetostrictive Level Transmitter High Accuracy For Liquid wholesale

Brand Name : nuoyingjiaye

Model Number : NYCZ

Certification : CE

Place of Origin : Xi'an, Shaanxi

MOQ : 1

Price : $240 to $1900

Payment Terms : T/T

Supply Ability : 300 pcs/ pre month

Delivery Time : 7 working days

Packaging Details : carton, 60cm×30cm×30cm

accuracy : high

range : optional 0-25m

output : RS485

material : probe andcable optional

for : liquid

display : yes

connection : many types

Signal output : 4... 20mA/HART/RS485/Modbus...

Contact Now

Working principle of Magnetostrictive Level Gauge

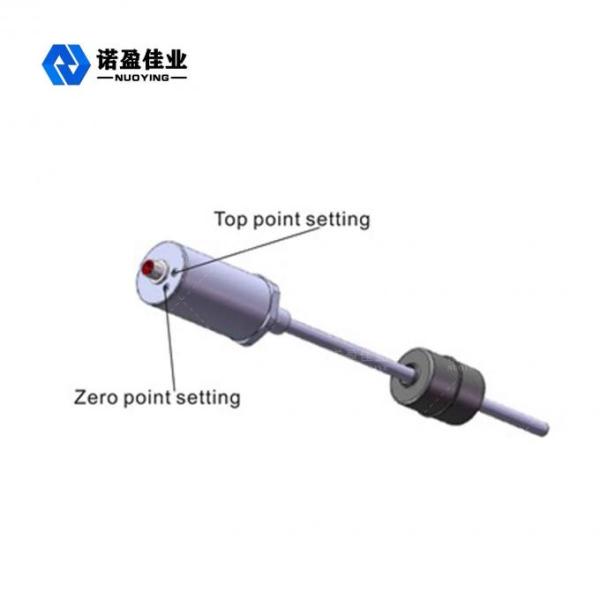

The product is mainly composed of measuring rod, electronic warehouse and non-contact floating ball set on the measuring rod. A magnetostrictive wire (waveguide wire) is installed in the measuring rod. The measuring rod is made of a non-magnetic stainless steel tube, which protects the waveguide wire very well.

Technical parameter of Magnetostrictive Level Gauge

Typical application	Liquid, interface measurement
Product model	NYCZ500
Antenna form	Cable, rod
Antenna material	304, 316
Measuring range	0-50~5000mm(cable:25m)
Measuring accuracy	±0.5mm
Power supply	24VDC(two wire/four wire),220VAC
Signal output	4... 20mA/HART/RS485/Modbus...
Working current	4... 20mA
Load characteristics	When the current output, the maximum load resistance is 600Ω; Voltage output, the maximum load resistance of 2mA
Process temperature	-40~+200°C
Response time	0.2~5ms
Process pressure	-0.1~10.0MPa
Process connection	Thread, bracket, flange (optional)
Resolution	±1mm
Protection class	IP 65, IP 67, IP 68(optional)
Explosion-proof grade	ExiaIICT6Ga,ExdIICT6Gb (see the certificate)

※Note:The product can be customized according to the specific requirements of users.
