Wide Applicability RF Capacitance Level Transmitter Water Treatment No Moving Parts

Name: Wide Applicability RF Capacitance Level Transmitter Water Treatment No Moving Parts
Brand: NUOYING
Price: 136 USD

China Wide Applicability RF Capacitance Level Transmitter Water Treatment No Moving Parts wholesale

Brand Name : NUOYING

Model Number : NYSP-Z23

Certification : CE, ATEX, SIL

Place of Origin : Xi'an, Shaanxi, China

MOQ : 1 pc

Price : $136~$541/pc

Payment Terms : T/T

Supply Ability : 1000 pcs per month

Delivery Time : 7 working days

Packaging Details : Carton, 40cm×30cm×30cm

Range : 3m, 20m

Power supply : 24VDC

Process temperature : -40 ~ +130℃, -184 ~ +260℃

Protection Class : IP67 blast

Process pressure : -0.1~1.6MPa

Process connection : Thread, flange (optional)

Probe type : Insulated hard rod

Typical application : Liquid, corrosive liquid

Contact Now

Nuoying NYSP-DR Radio Frequency Capacitance Level Meter Overview

Product Parameters

Wide Applicability RF Capacitance Level Transmitter Water Treatment No Moving Parts

Typical application	Liquid, corrosive liquid
Probe material	304, PTFE, 316 (optional)
Power supply	24VDC
Operation temperature	-40 ~ +130℃, -184 ~ +260℃
Antenna form	Cable type, pole type
Working pressure	-0.1~1.6MPa
Process connection	Thread, flange (optional)

Products Description

NYSP-DR RF Capacitor Level Meter Working Principle

The RF capacitance level meter works on the basis of radio frequency (RF) capacitance technology. A radio frequency is applied to the probe and the effect caused by the surrounding environment is determined by continuous analysis. Since all materials have a dielectric constant and their conductivity is different from that of air, the total impedance reacted to by small capacitance shifts changes when the probe is in contact with the material. Because the energized probe and the vessel wall form the two pole plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, and when air (dielectric constant of 1.0) is replaced by any other material (dielectric constant >10), the change in capacitance value causes a change in impedance. This effect is measured by the circuit and then compared with the reference reference frame established by the sensitivity setting (circuit).

NYSP-DR RF Capacitor Level Meter Design Feature

1. Modular converter and sensor integration, no moving parts, high reliability, strong anti-interference capability.
2. Wider applicability, a variety of probe forms, a variety of process connection forms, a variety of production materials, can be customized design.
3. Extremely easy to install, debug and maintain.

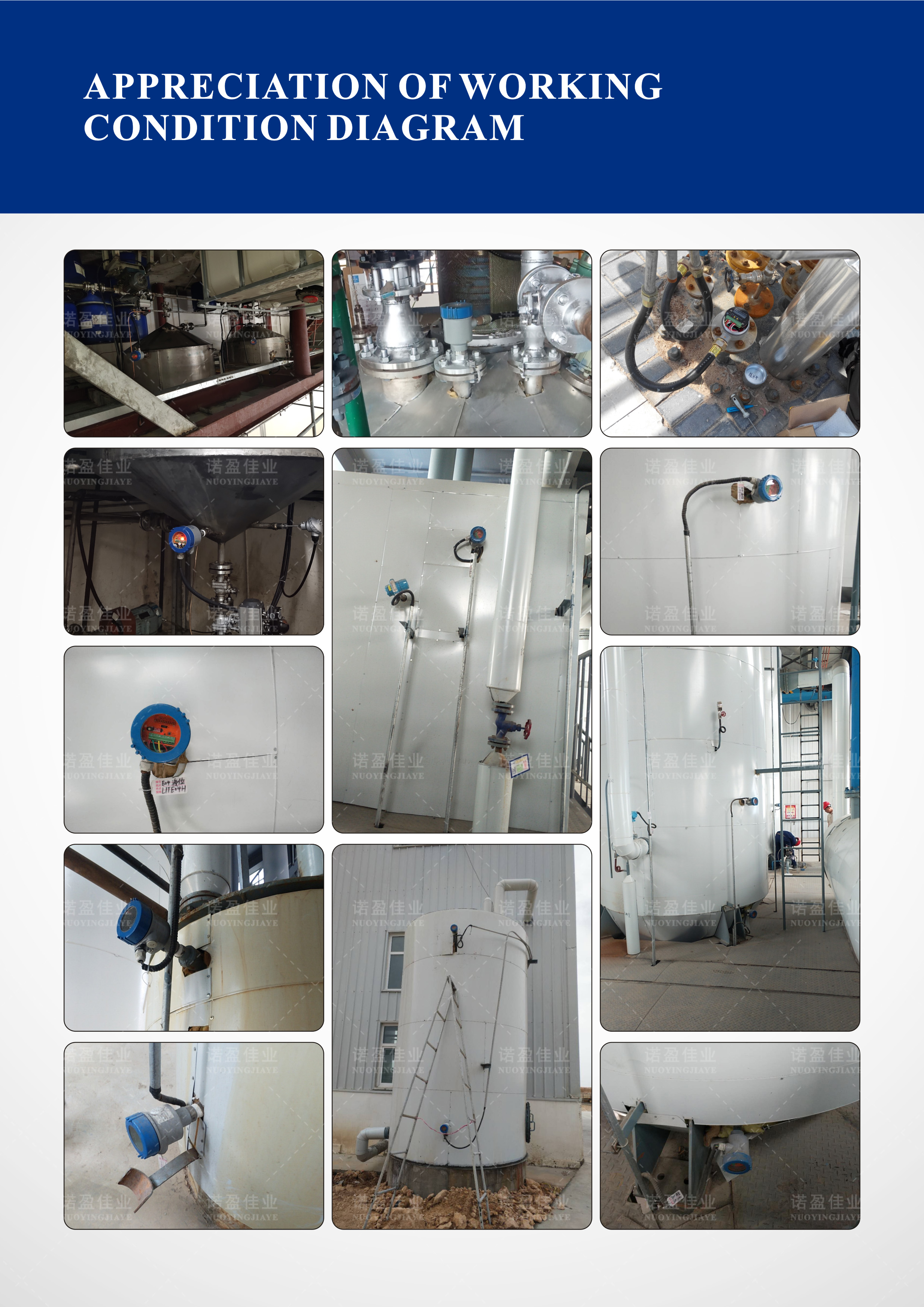

Wide Applicability RF Capacitance Level Transmitter Water Treatment No Moving Parts
